Pactrade Marine

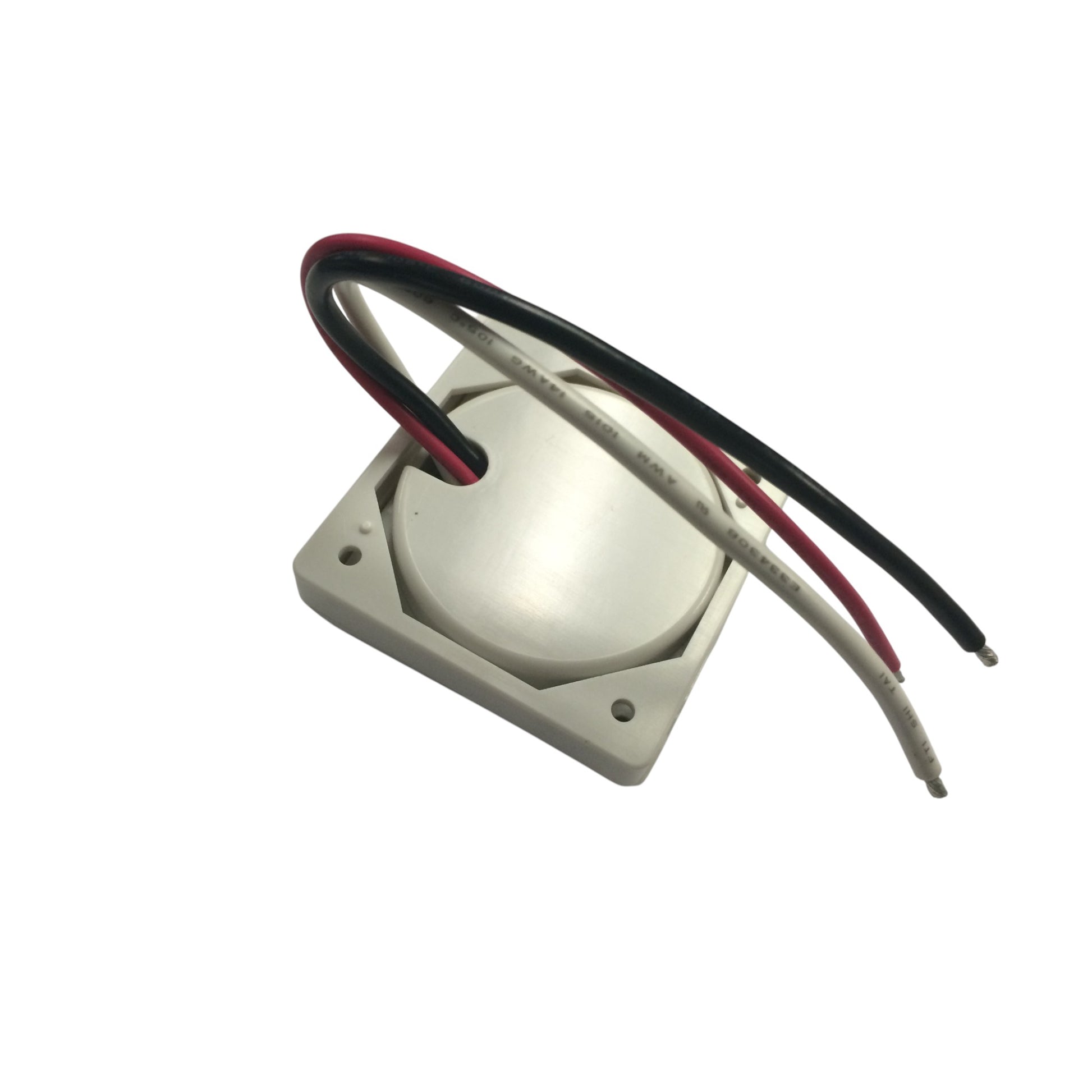

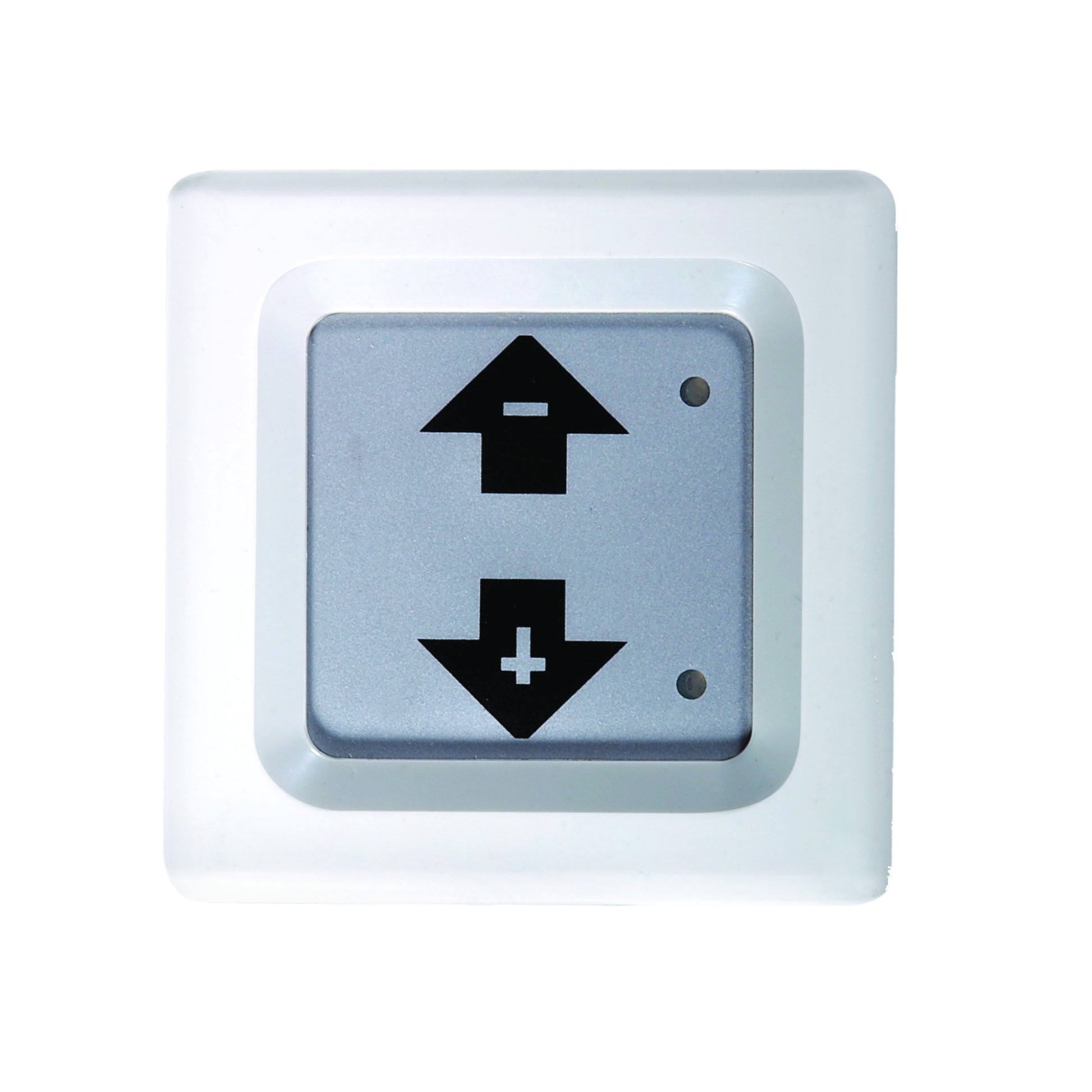

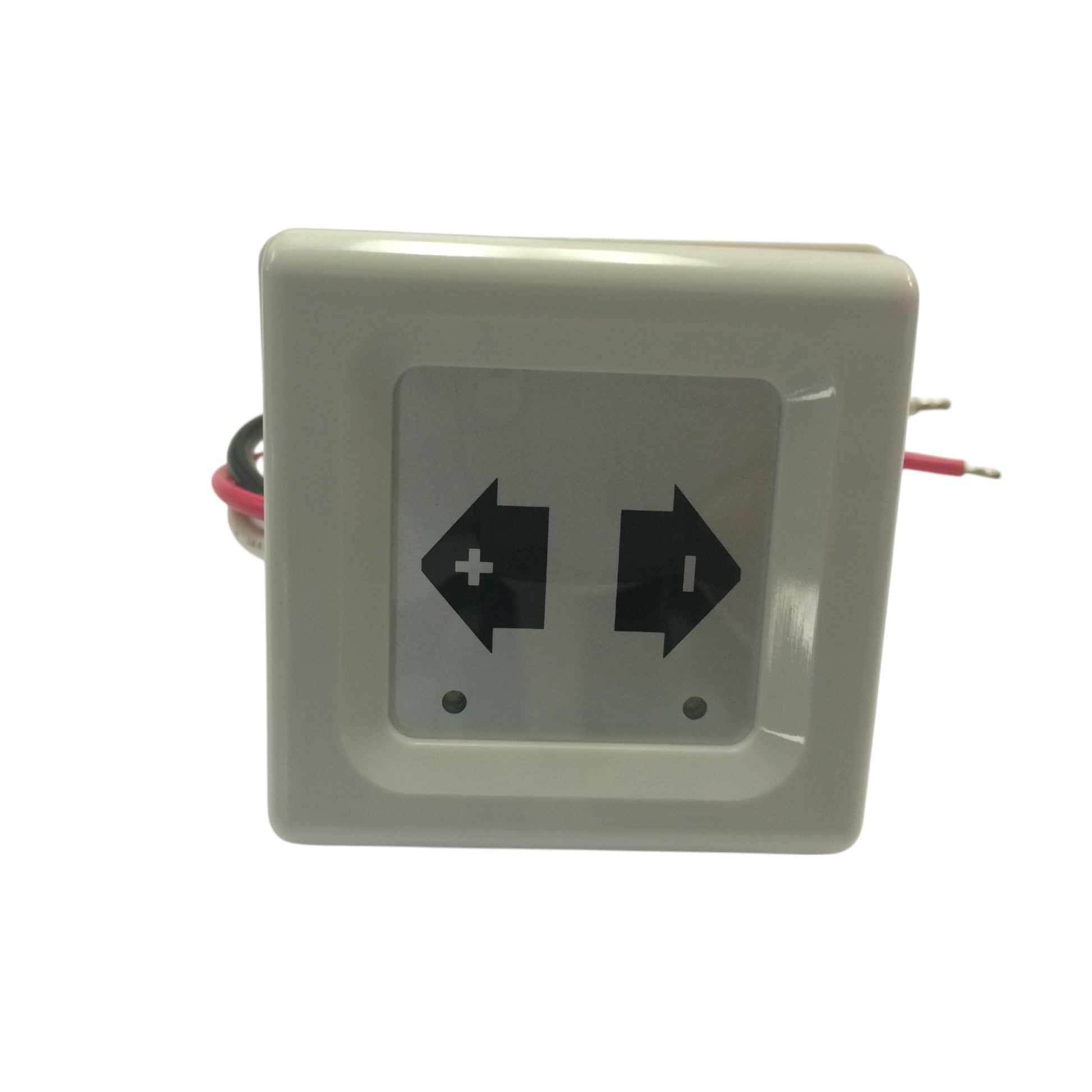

MARINE BOAT 12 V PLASTIC DIMMER SWITCH RANGE 12-30 VDC 120W RATING
MARINE BOAT 12 V PLASTIC DIMMER SWITCH RANGE 12-30 VDC 120W RATING
Regular price
$43.99 USD
Regular price
Sale price
$43.99 USD
Unit price
/
per
Couldn't load pickup availability

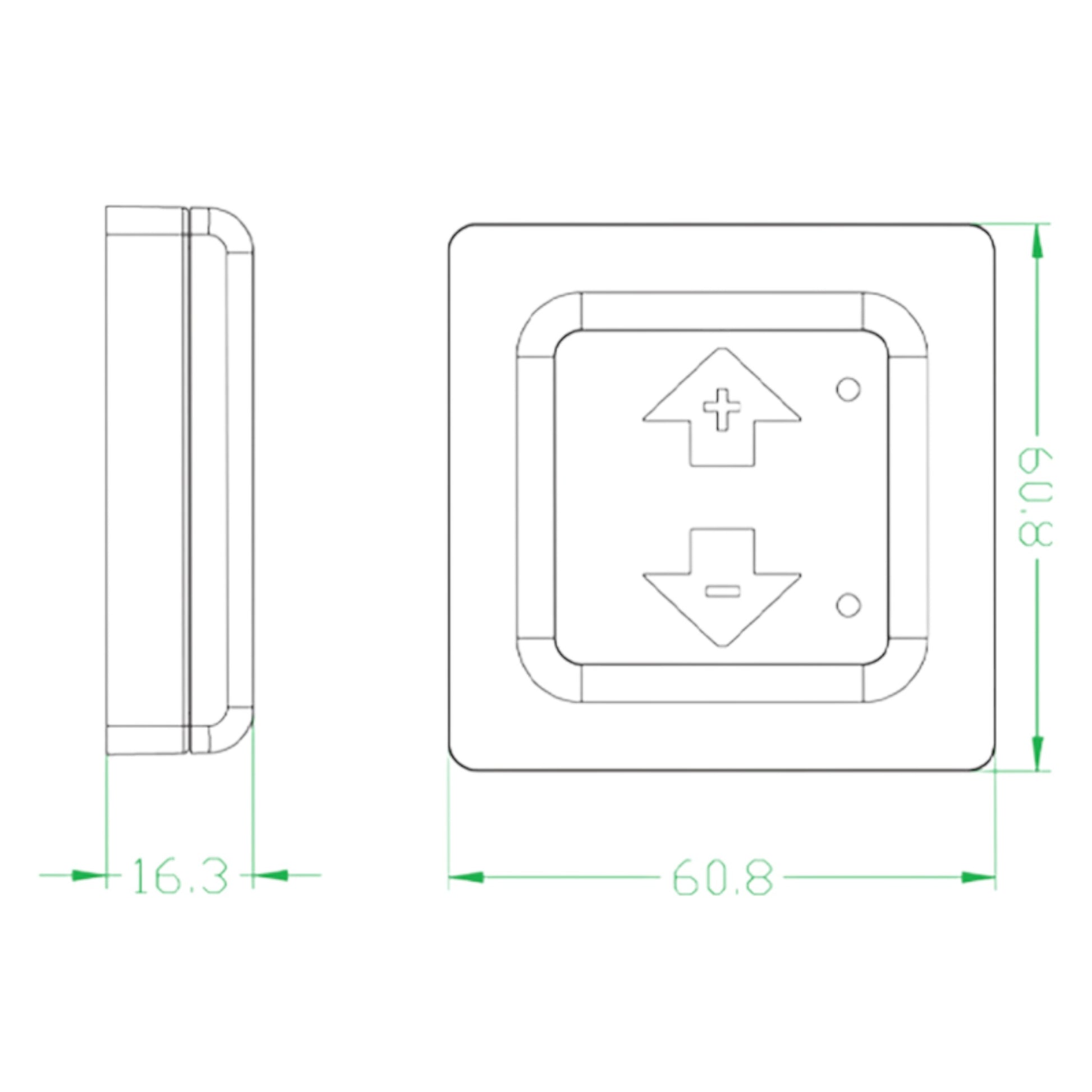

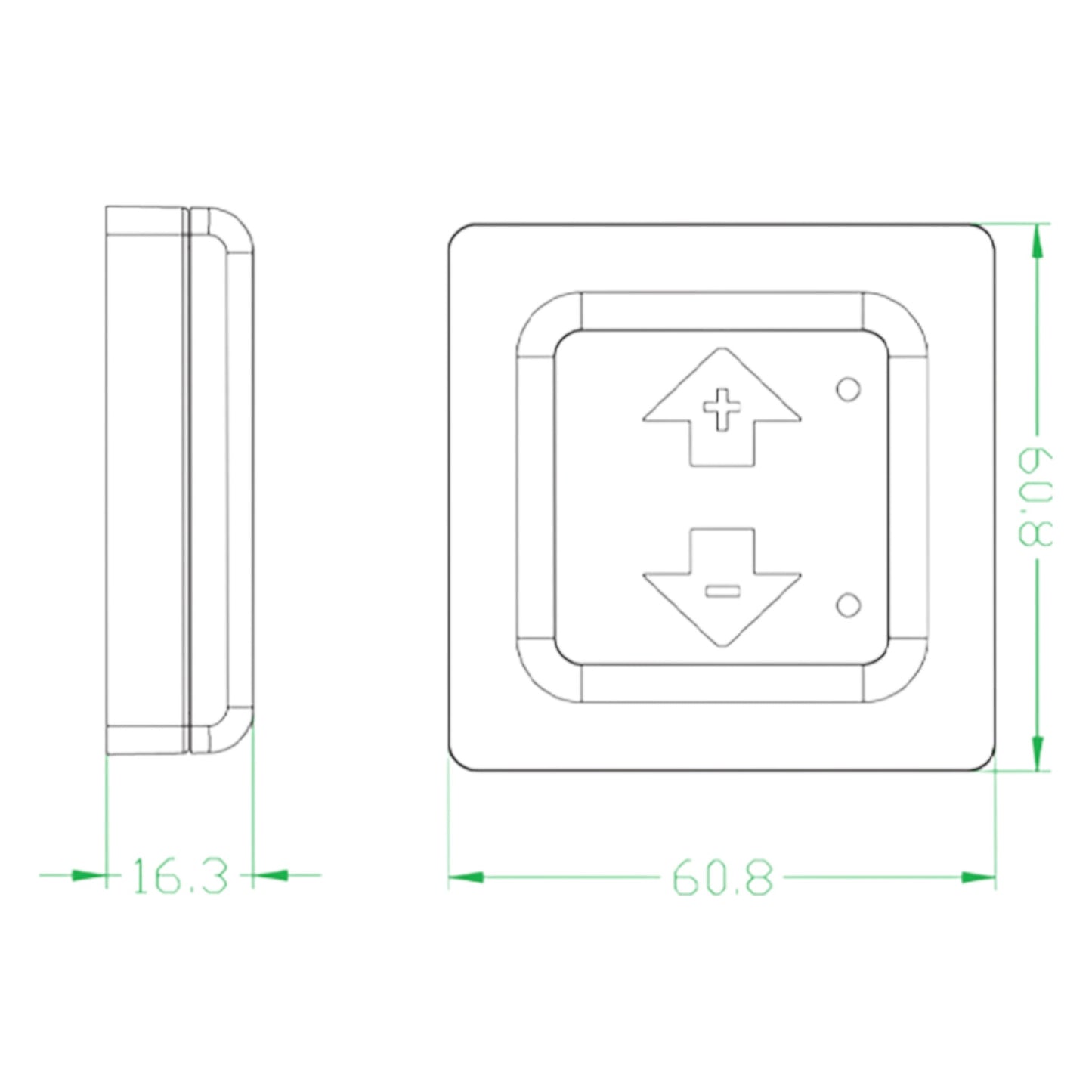

- This PWM Dimmer is made of plastic and is range from 12V-30VDC. Its maximum lamp rating is 120W. The dimension of the dimmer is as follows: 60mm (2.36 inch) Length x 60mm (2.36 inch) Height x 15mm (0.59 inch) Depth
- The dimmer will cut off the light in following situations: a. The Load Exceeds 120W. b. In 12V System, Voltage <9V or >15V. c. In 24V System, Voltage <19V or >31V. d. For regular LED lights only, not for high power LED lights. The LED next to "+" or "-" key will flash depend on the above situations.
- Material: Plastic PC LED Quantity: NA
- Item Number: P01160WH
