Pactrade Marine Boat TMC 12V Whisper Quiet Oscillating Fan 6" D Cabin And Galley
Pactrade Marine Boat TMC 12V Whisper Quiet Oscillating Fan 6" D Cabin And Galley
Regular price
$60.99 USD
Regular price
Sale price
$60.99 USD
Unit price
/
per
Couldn't load pickup availability

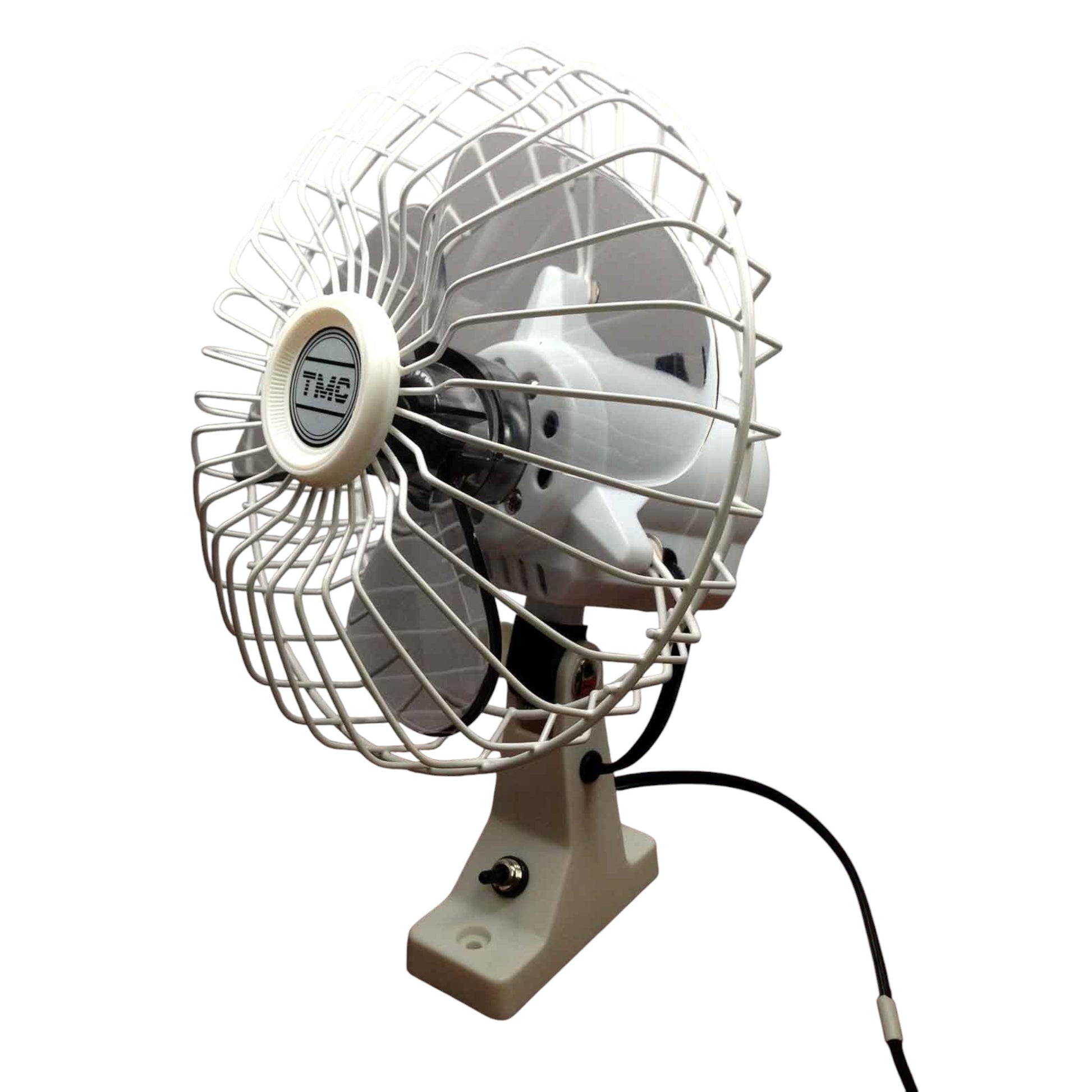

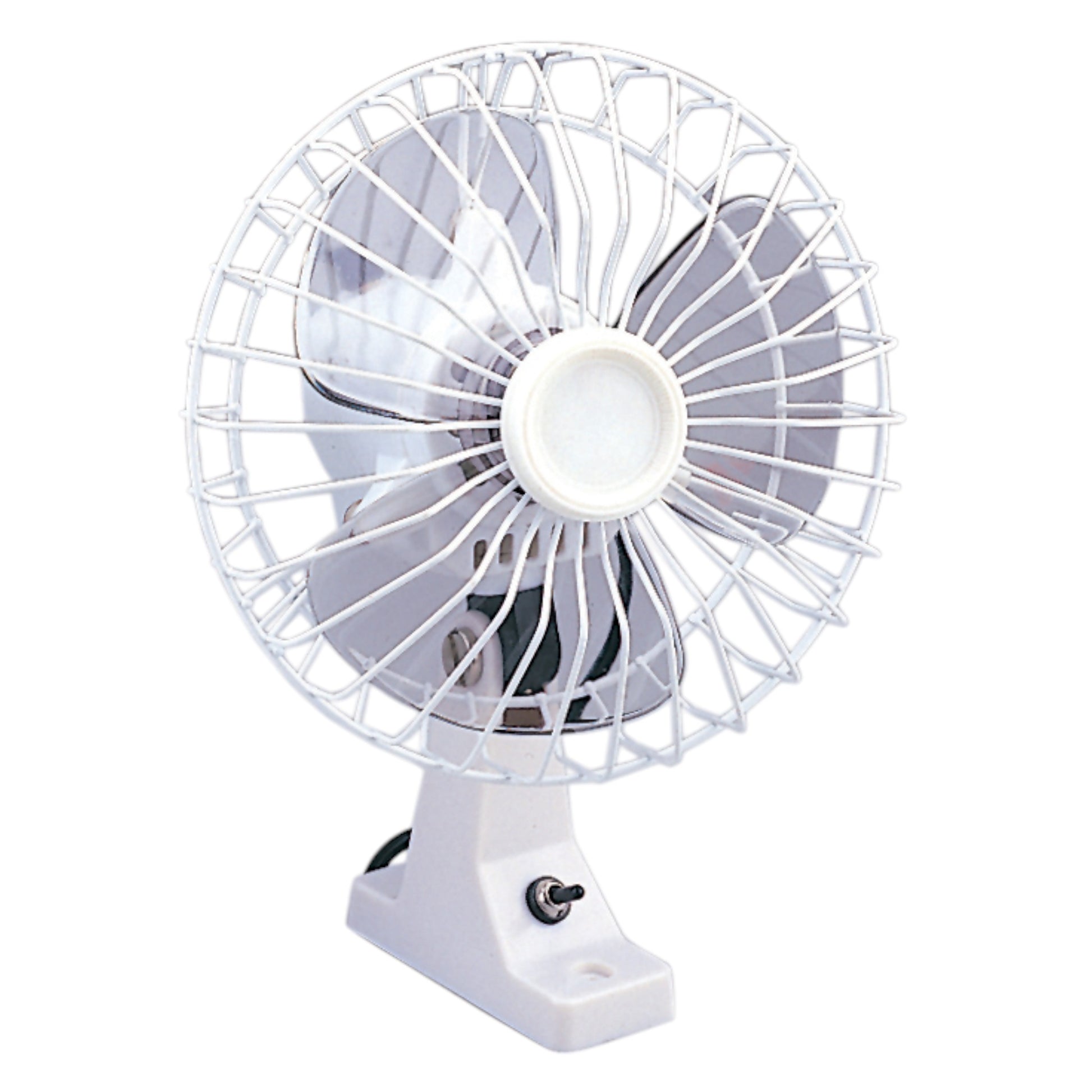

- This is a TMC Quiet Oscillating Fan that is perfect for cabin and galley use.
- It has a blade diameter of 6" and it comes with power cord, toggle switch, pull swicth, and a cushion with tapping screws.
- Voltage: 12V;
- Current: 1.4A;
- Air Velocity: 200m/min;
- Air Displacement: 3.69m3/min;
- Weight: 0.6kg.
- Distance between screw holes: 2-5/8".
- Housing Diameter: 7".

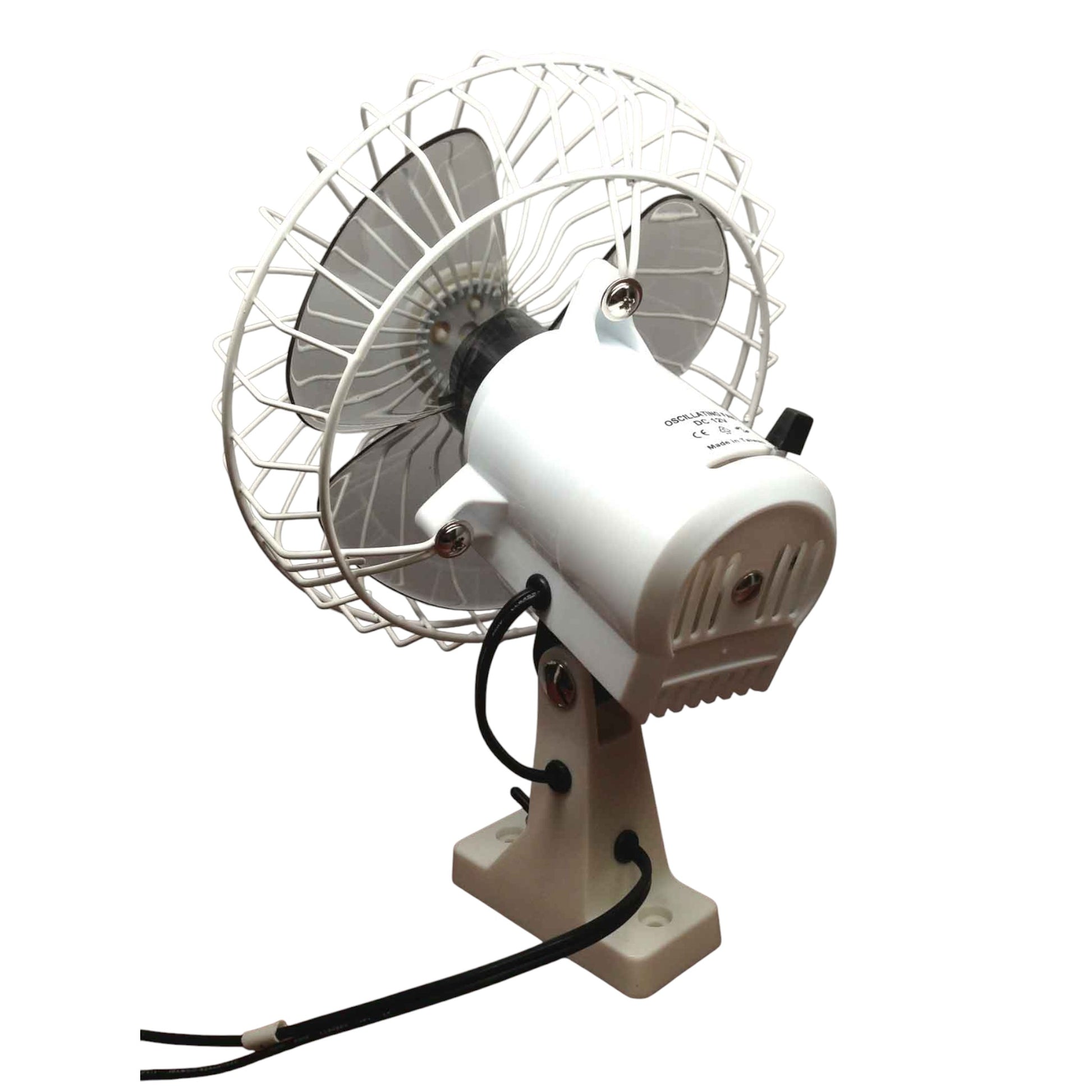

- Oscillation level: The fan oscillates if the lever on the back is pulled down.
- To stop oscillation, push the lever back up.
- Variable shift head oscillation mechanism: To reset the angle of the fan, turn the head to the desired position and press the front guard.
- Oscillation will then continue at the new angle.
- Tilt adjustment nut: To change the degree of upward or downward tilt of the fan, please turn the nut counter-clockwise for loosening the nut and set the head, then retighten the nut (just turn the nut clock-wise).
- Power cord terminals: Attach these to the wires of the power cord.
- If the fan rotates in a reverse direction, reverse them and reattach.
- Maintenance: Clean with a soapy cloth, wipe with a wet rag and dry with a duster.
- Do not use gasoline, benzine, thinners or other volatile solvent.
- Installation: (1) Find a suitable place to install the fan (i.e. on the dashboard or doorpost).
- Be sure the fan oscillates freely.
- (2) Drill two holes in the car bodywork around 1/8" in diameter opposite the holes int he foot-plate.
- (3) Secure the foot-plate with the tapping screws, insert the cushion between the plate and the bodywork.
- Item Number: P13062-12
